EMD-30992

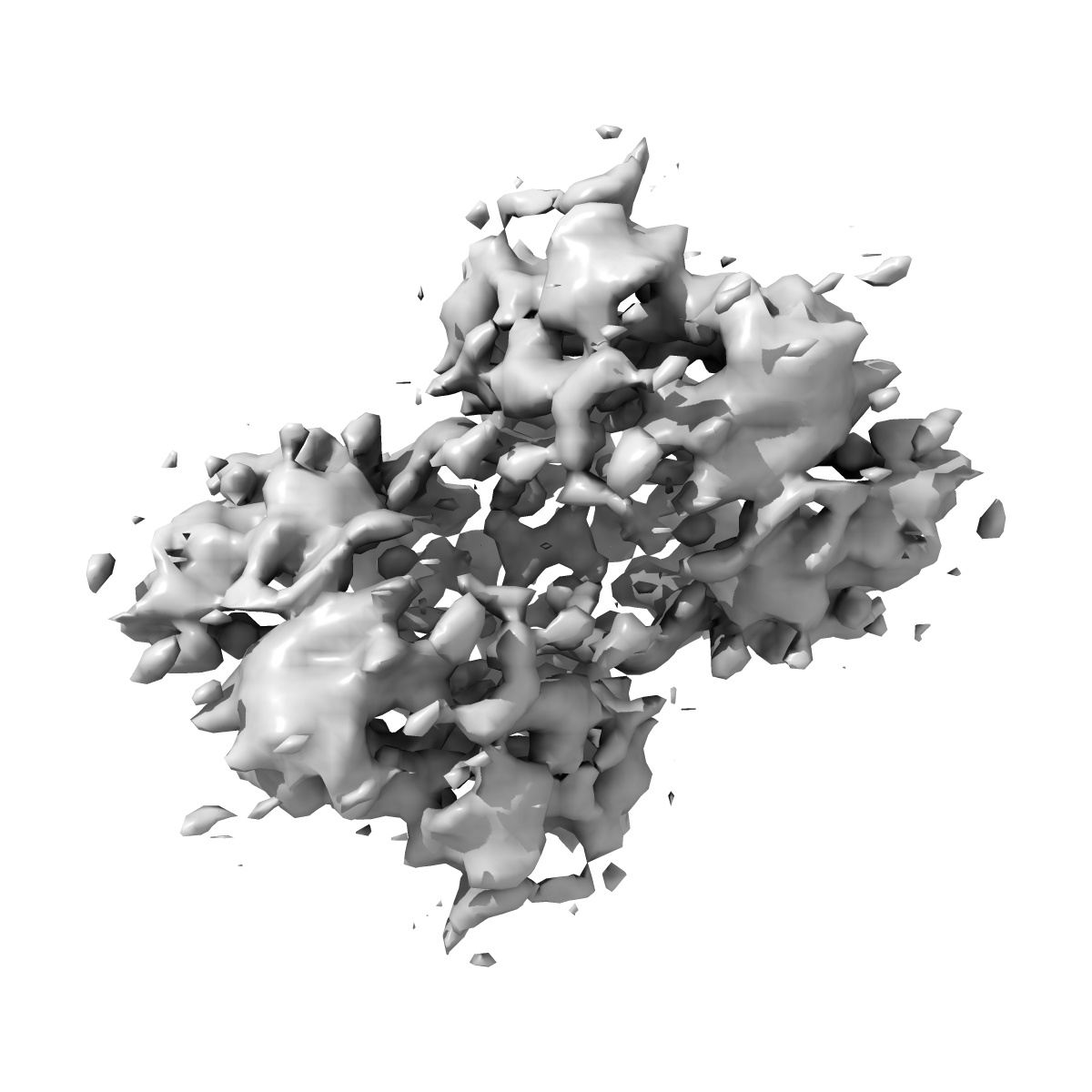

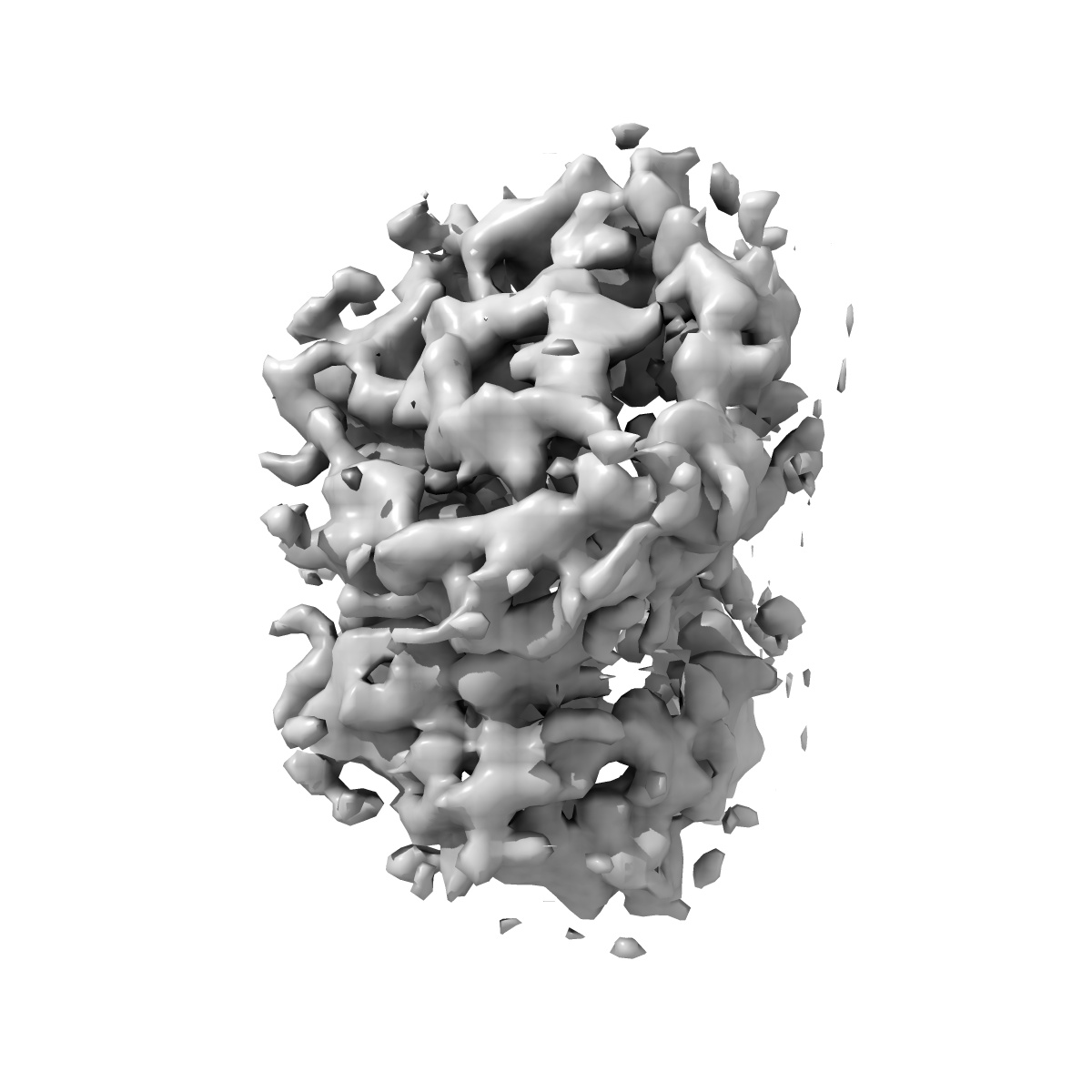

Open type of human proteasome alpha 7 homo-tetradecamer
EMD-30992
Single-particle11.9 Å
Deposition: 18/02/2021Map released: 05/05/2021
Last modified: 03/11/2021
Sample Organism:
Homo sapiens
Sample: Proteasome subunit alpha type-7
Deposition Authors: Song C, Murata K
Sample: Proteasome subunit alpha type-7
Deposition Authors: Song C, Murata K
Structural Fluctuations of the Human Proteasome alpha 7 Homo-Tetradecamer Double Ring Imply the Proteasomal alpha-Ring Assembly Mechanism.
Abstract:
The 20S proteasome, which is composed of layered α and β heptameric rings, is the core complex of the eukaryotic proteasome involved in proteolysis. The α7 subunit is a component of the α ring, and it self-assembles into a homo-tetradecamer consisting of two layers of α7 heptameric rings. However, the structure of the α7 double ring in solution has not been fully elucidated. We applied cryo-electron microscopy to delineate the structure of the α7 double ring in solution, revealing a structure different from the previously reported crystallographic model. The D7-symmetrical double ring was stacked with a 15° clockwise twist and a separation of 3 Å between the two rings. Two more conformations, dislocated and fully open, were also identified. Our observations suggest that the α7 double-ring structure fluctuates considerably in solution, allowing for the insertion of homologous α subunits, finally converting to the hetero-heptameric α rings in the 20S proteasome.
