EMD-3879
The baseplate of a non-contractile T6SS sheath.
EMD-3879
Single-particle8.0 Å
Deposition: 18/09/2017Map released: 29/11/2017
Last modified: 04/12/2019
Sample Organism:
Vibrio cholerae
Sample: The baseplate of a non-contractile T6SS sheath.
Deposition Authors: Nazarov S, Basler M
Sample: The baseplate of a non-contractile T6SS sheath.
Deposition Authors: Nazarov S, Basler M
Cryo-EM reconstruction of Type VI secretion system baseplate and sheath distal end.
Abstract:

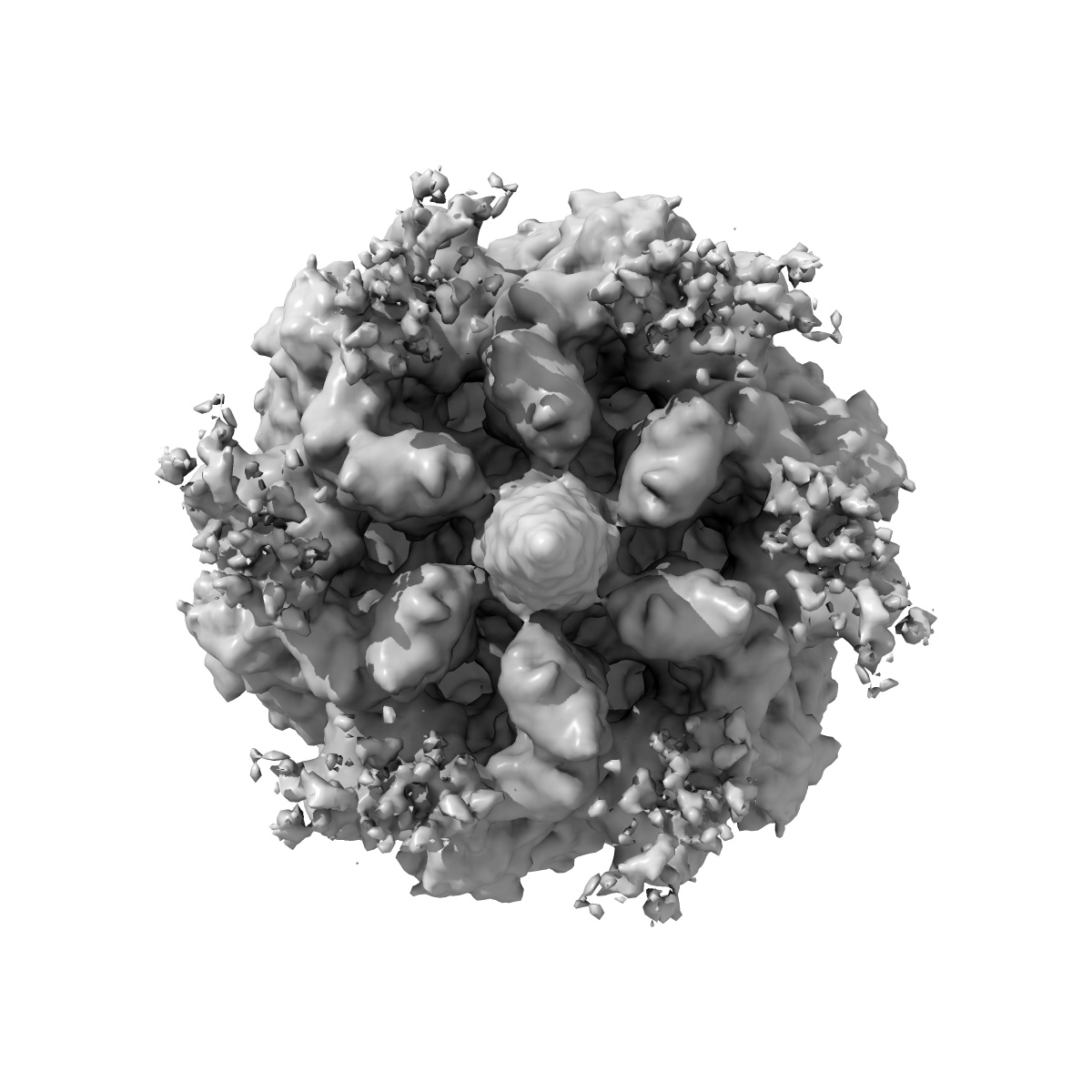

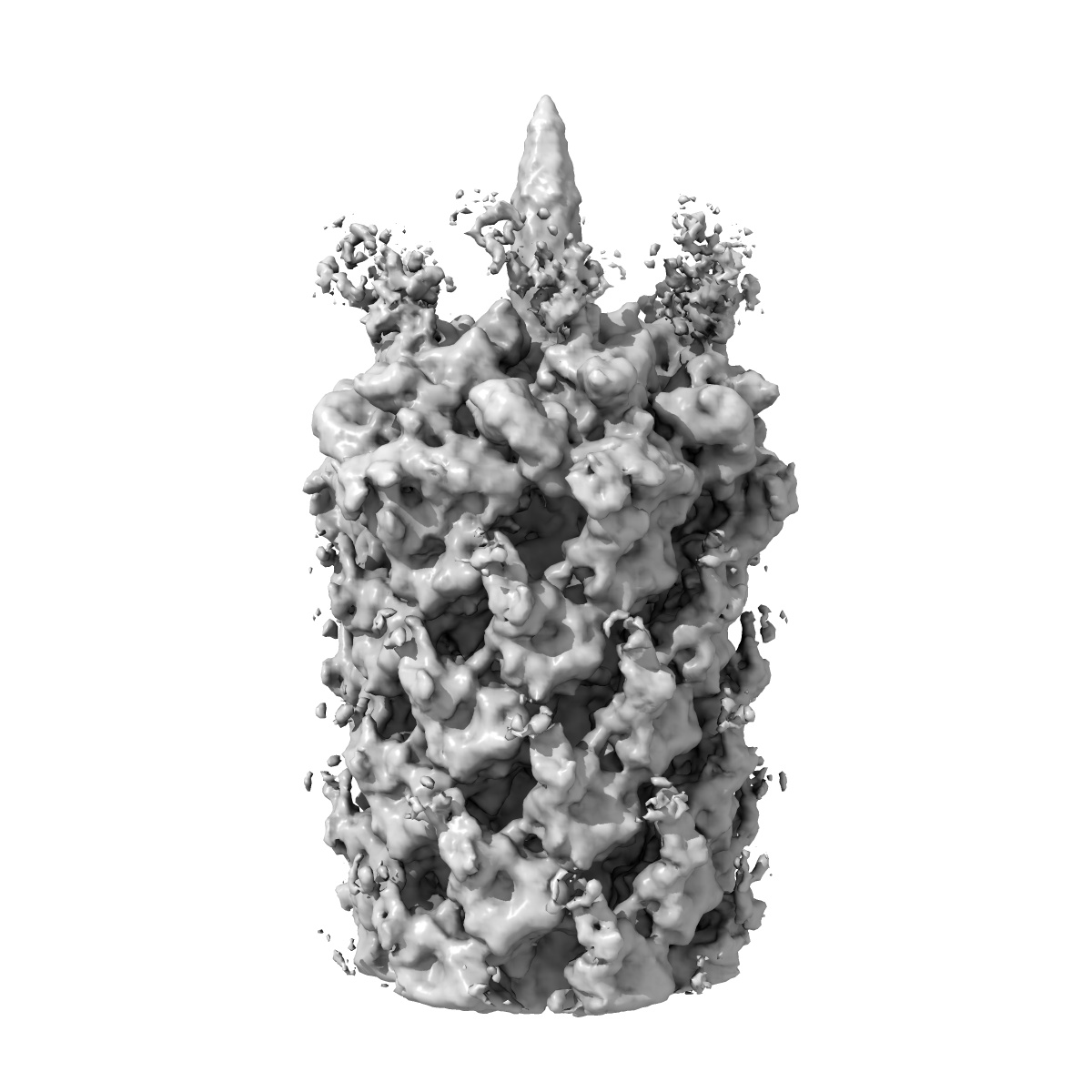

The bacterial Type VI secretion system (T6SS) assembles from three major parts: a membrane complex that spans inner and outer membranes, a baseplate, and a sheath-tube polymer. The baseplate assembles around a tip complex with associated effectors and connects to the membrane complex by TssK. The baseplate assembly initiates sheath-tube polymerization, which in some organisms requires TssA. Here, we analyzed both ends of isolated non-contractile Vibrio cholerae sheaths by cryo-electron microscopy. Our analysis suggests that the baseplate, solved to an average 8.0 Å resolution, is composed of six subunits of TssE/F2/G and the baseplate periphery is decorated by six TssK trimers. The VgrG/PAAR tip complex in the center of the baseplate is surrounded by a cavity, which may accommodate up to ~450 kDa of effector proteins. The distal end of the sheath, resolved to an average 7.5 Å resolution, shows sixfold symmetry; however, its protein composition is unclear. Our structures provide an important step toward an atomic model of the complete T6SS assembly.
