EMD-26512
SARS-CoV-2 spike in complex with AHB2-2GS-SB175
EMD-26512

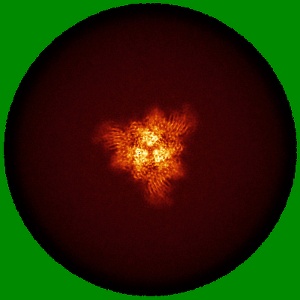

Single-particle3.1 Å

Map released: 08/06/2022
Last modified: 30/10/2024
Sample Organism:
Severe acute respiratory syndrome coronavirus 2,
synthetic construct
Sample: SARS-CoV-2 spike in complex with multivalent minibinder AHB2-2GS-SB175
Fitted models: 7uhc (Avg. Q-score: 0.465)
Deposition Authors: Park YJ
,
Seattle Structural Genomics Center for Infectious Disease (SSGCID),
Veesler D
Sample: SARS-CoV-2 spike in complex with multivalent minibinder AHB2-2GS-SB175
Fitted models: 7uhc (Avg. Q-score: 0.465)
Deposition Authors: Park YJ


Multivalent designed proteins neutralize SARS-CoV-2 variants of concern and confer protection against infection in mice.
Hunt AC
,
Case JB
,
Park YJ
,
Cao L
,
Wu K
,
Walls AC
,
Liu Z
,
Bowen JE
,
Yeh HW
,
Saini S
,
Helms L
,
Zhao YT
,
Hsiang TY
,
Starr TN
,
Goreshnik I
,
Kozodoy L,
Carter L
,
Ravichandran R
,
Green LB,
Matochko WL
,
Thomson CA,
Vogeli B
,
Kruger A
,
VanBlargan LA
,
Chen RE
,
Ying B
,
Bailey AL
,
Kafai NM
,
Boyken SE
,
Ljubetic A
,
Edman N
,
Ueda G
,
Chow CM
,
Johnson M
,
Addetia A
,
Navarro MJ
,
Panpradist N
,
Gale Jr M
,
Freedman BS,
Bloom JD
,
Ruohola-Baker H
,
Whelan SPJ
,
Stewart L
,
Diamond MS
,
Veesler D
,
Jewett MC
,
Baker D
(2022) Sci Transl Med , 14 , eabn1252 - eabn1252











































(2022) Sci Transl Med , 14 , eabn1252 - eabn1252
Abstract:
New variants of severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) continue to arise and prolong the coronavirus disease 2019 (COVID-19) pandemic. Here, we used a cell-free expression workflow to rapidly screen and optimize constructs containing multiple computationally designed miniprotein inhibitors of SARS-CoV-2. We found the broadest efficacy was achieved with a homotrimeric version of the 75-residue angiotensin-converting enzyme 2 (ACE2) mimic AHB2 (TRI2-2) designed to geometrically match the trimeric spike architecture. Consistent with the design model, in the cryo-electron microscopy structure TRI2-2 forms a tripod at the apex of the spike protein that engaged all three receptor binding domains simultaneously. TRI2-2 neutralized Omicron (B.1.1.529), Delta (B.1.617.2), and all other variants tested with greater potency than the monoclonal antibodies used clinically for the treatment of COVID-19. TRI2-2 also conferred prophylactic and therapeutic protection against SARS-CoV-2 challenge when administered intranasally in mice. Designed miniprotein receptor mimics geometrically arrayed to match pathogen receptor binding sites could be a widely applicable antiviral therapeutic strategy with advantages over antibodies in greater resistance to viral escape and antigenic drift, and advantages over native receptor traps in lower chances of autoimmune responses.
